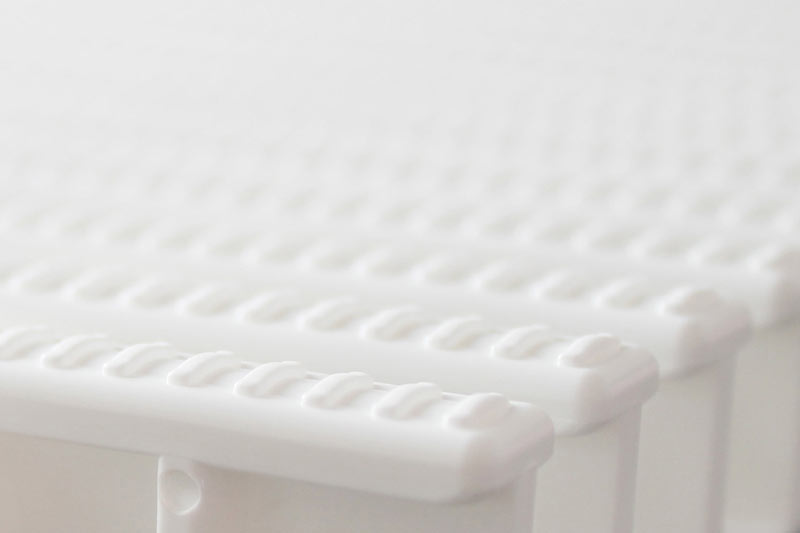

Classic swimming pool grating

Classic swimming pool grating for overflow channels with high anti-slip properties and additional middle click-connection for easy installation and stability. Made from high impact PP-UV, resistant to abrasion and UV rays with light stabilized colors. Available in 1m fixed or flexible segments. 90° and custom made angle solutions available (ask for availability). Available in multiple heights and widths.

Technical details

Material
Made from high impact PP-UV with abrasion resistance.

UV & Chemical Resistance
UV resistant material with light stabilized colors.
Resistant to chlorine, sea water and common cleaning agents.

Hygienic certificate
No harmfull substances released into water.

High anti-slip properties
Anti-slip properties certified according to DIN 51097 class C.
Parallel 32°, Perpendicular 31°.

Middle click-connection
Middle click-connection eliminates any need for additional cable or rod connections. Click-connection will also be useful to adjust the length of a segment or replace one or more elements in a few minutes.

Available measures
Height 22mm and 25 mm in 195mm, 245mm, 295mm and 335mm width.
Height 35mm in 245 mm width.
Non-standard widths available per request.
Note: optimal channel width = grating width + 5mm.

Available segment types
Fixed segment (1m)
Flexible segment (1m)
90° angle
Custom made angle (ask for availability)

Available color
Standard color: White RAL 9016.
Non-standard colors available: Beige RAL 1013, Blue RAL 5012, Grey RAL 7046.
